DOSEEM SCBA DSBA6.8P (CCS)
DSBA6.8P (CCS) SCBA comprises full face mask, demand valve, air cylinder and valve, pressure reducer unit, backplate, mechanical pressure gauge.
For marine.
US 30-day money-back guarantee
物流时间表
售后
DOSEEM DSBA6.8P Self-contained Breathing Apparatus
Article number: 01009
Model: DSBA6.8P
Standard
EN 137:2006
Fulfill the standard
GB/16556-2007
Approve: CCS
Introduction:
DOSEEM self-contained breathing apparatus (SCBA) is widely used in fire control, chemical, ship, oil, smelting, electric power, warehouse, laboratory, mine and other key departments for fire fighting, fire, gas, steam, and oxygen. It is a safe and effective for fire extinguishing and rescue. An ideal personal breathing protection device.
Recommended field: Marine offshore

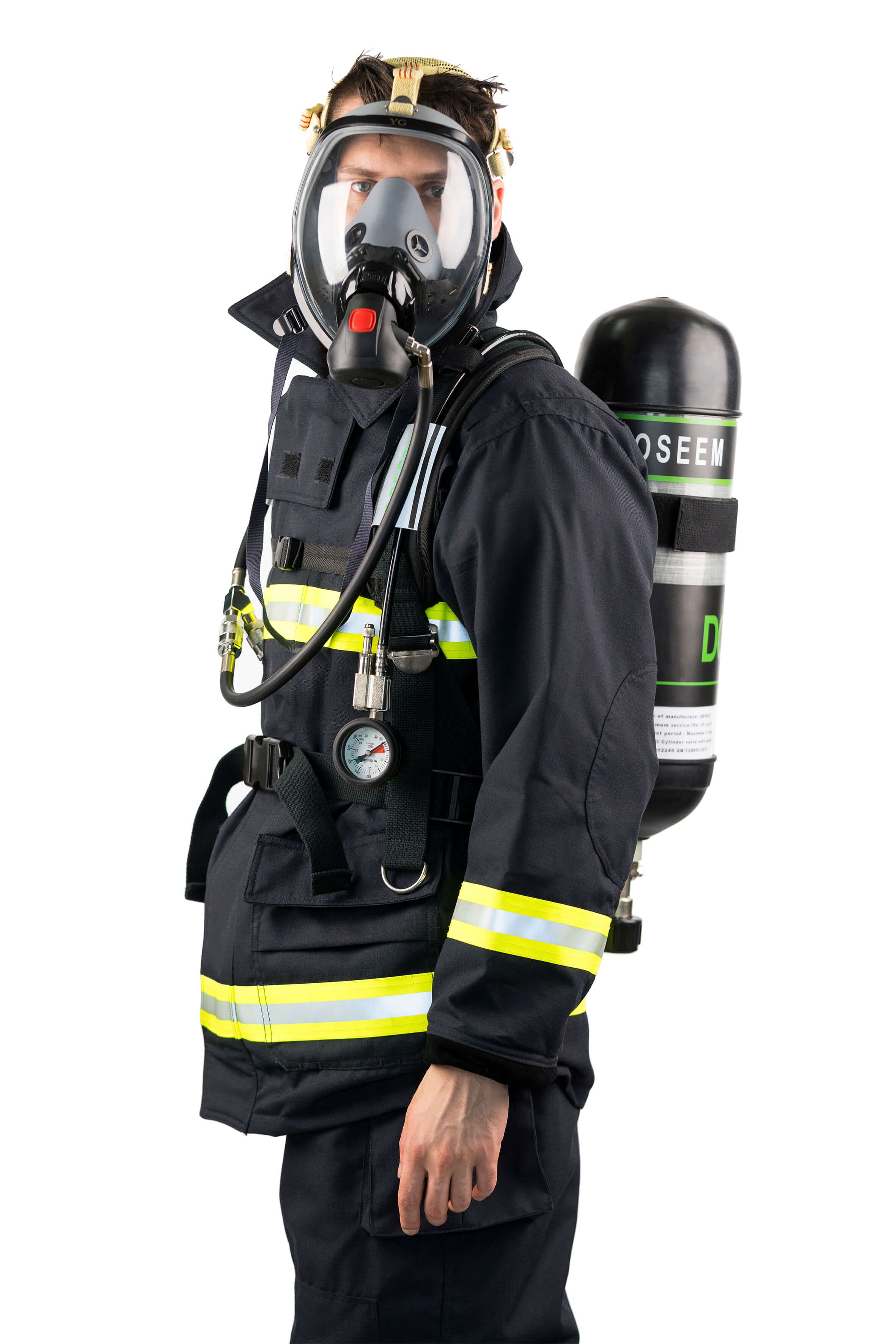

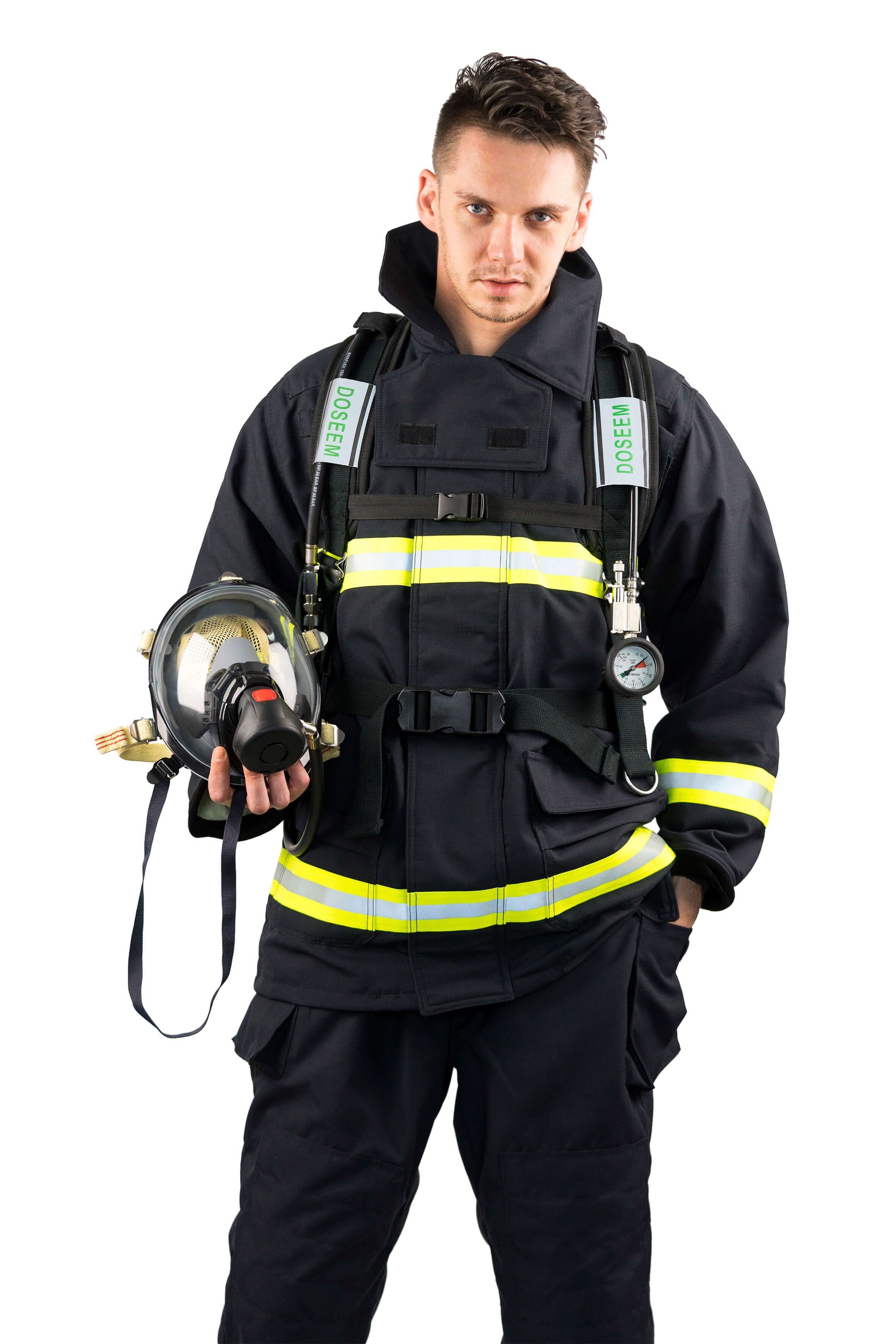

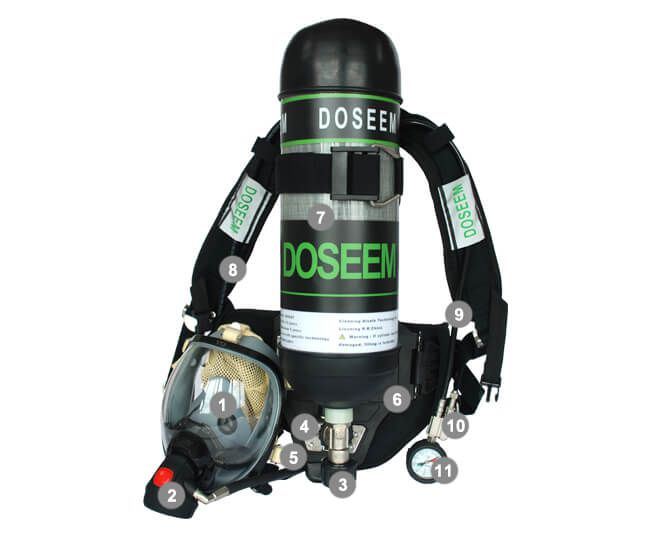

DOSEEM DSBA6.8P(CCS) SCBA comprises a full face mask, a demand valve, an air cylinder, a self-locking cylinder valve, a pressure reducing valve, a high pressure pipe, a medium pressure pipe, a backplate, a warning whistle and a mechanical pressure gauge.
1. Full face mask
2. Demand valve
3. Self-locking cylinder Valve
4. Pressure reducing valve
5. Fast connector
6. Backplate
7. Air cylinder
8. Medium pressure tube
9. High pressure tube
10. Alarm whistle
11. Mechanical pressure gauge
1. Full face mask
The full-face mask is a positive-pressure mask that adopts a single-eye window and a double-layer annular seal, and has the characteristics of wide vision and good transparency. The main frame of the face mask is made of silicone rubber material and has a small mouth nasal mask which is attached to the nose and mouth. It can enhance the full-face mask effective breathing space and reduce respiratory resistance. The face mask is made of polycarbonate, which is always clear, bright and fog-free during use. The head cover is connected with the fast clip with the tightening belt, and the tightening belt can be tightened to make the face mask double seal ring close to the wearer's face so as to ensure the safety of the user's breathing.
More & Tech Datas
2. Demand valve
This demand valve is a plug-in type positive pressure demand valve. The air supply flow is greater than 300L/minute. Simply insert the mask during use and take a deep breath to open the demand valve for air. Operation method: Place the demand valve inlet Insert the mask directly, and hear a "beep" sound, indicating a smooth insertion. Take a deep breath and the demand valve will automatically open the air.
The bypass valve is a method for the use of an emergency valve designed on the demand valve: when the demand valve fails, the bypass valve button is directly pressed, and the demand valve can supply the mask directly to the air for the operator to evacuate and use.
More & Tech Datas

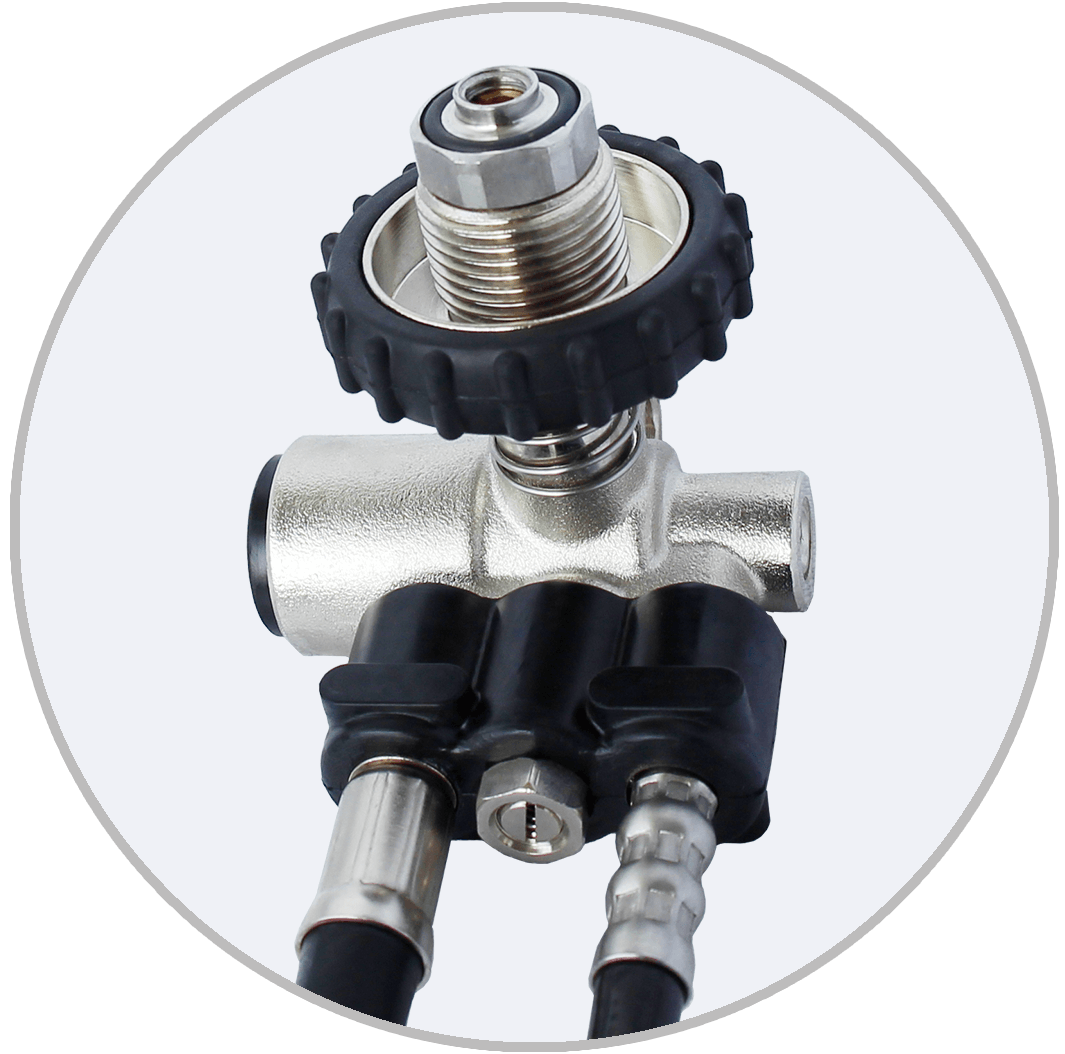

3. Self-locking cylinder valve
Air cylinder valve is an important part of the cylinder switch gas source. Its structure is a female threaded bottle valve. The thread is divided into two types: imperial G5/8 and metric M18*1.5. They are matched with the external thread reducer. The cylinder valve of the internal thread structure is equipped with a high-pressure safety diaphragm. When the gas pressure in the cylinder exceeds 38MPa-45MPa, the safety diaphragm will burst and the gas will be rapidly relieved.
More & Tech Datas
.png?access_token=d5f6e576-c79c-4206-a8d6-4db033030d63)
4. Pressure reducing valve
The pressure reducing valve is a device that depressurizes the high-pressure gas to a constant output pressure of 0.8±0.2 MPa and supplies the gas to the demand valve. The pressure relief valve is mounted on the backrest and is linked to the cylinder valve by the connection nut hand-wheel. The gas source output is divided into two parts: high pressure and low pressure. The high-pressure gas source gas is sent to the high pressure meter and residual gas alarm through the high pressure tube. After decompression, the low-pressure gas source is sent to the demand valve through the medium pressure tube, and the low pressure end is provided with a safety valve in the crucible cavity. Pressure relief valve and medium pressure tube, high pressure tube connection are plug-in type, the tube can rotate freely.
More & Tech Datas
5. Fast connector
High safety standards
Imported stainless steel, no rust, corrosion resistance, no deformation resistance
Fast locking, convenient loading and unloading
Strong air tightness
Use safety
6. Backplate
The role of backplate is to support the fixed cylinder and pressure reducer. The weight on the backplate is evenly distributed on the shoulders by the straps. The strap consists of a shoulder strap and a waistband. Both can be quickly adjusted in length so that the backrest rests on the back and buttocks of the human body. The gas cylinder is fixed on the backrest by a quick fixing device, and the diameter of the cylinder can be adjusted to fix the length of the cylinder.
More & Tech Datas

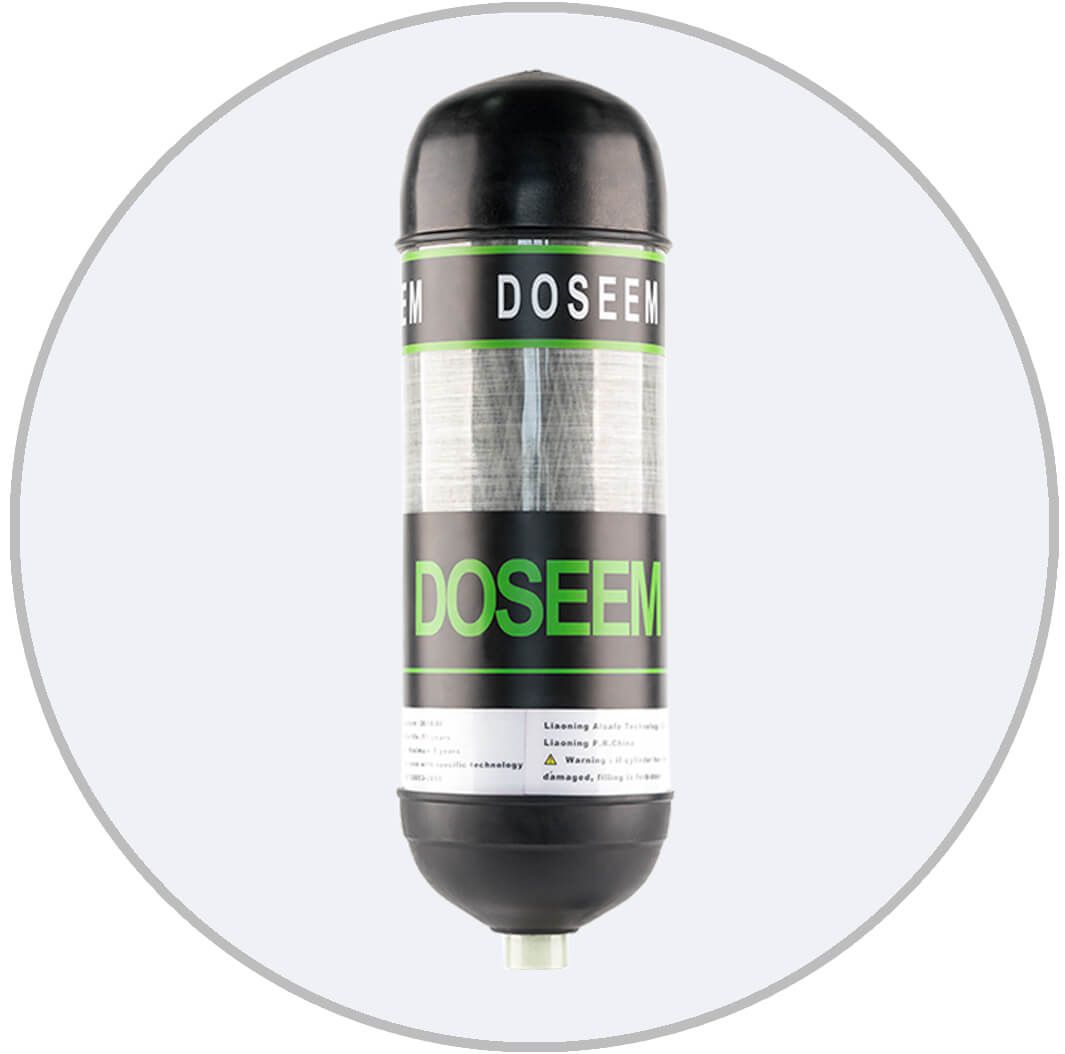

7. Air cylinder
The gas cylinder is a high-pressure vessel for storing compressed air for human respiratory use. The rated storage pressure is 30 MPa. This gas cylinder is an international high-pressure cylinder.
The process of carbon fiber composite cylinders: In the aluminum alloy liner, high-strength fibers such as carbon fiber and glass fiber are wound together with polymer materials.
Features: light weight, high strength, corrosion resistance, long service life.
More & Tech Datas
8. Medium pressure tube
The medium pressure tube is an air output flexible conduit composed of a rubber tube and a quick connector. One end is connected to an demand valve, and the other end is connected to a pressure reducer. The connection method is a card-type connection, which can be quickly loaded and unloaded, and can also be freely rotated in the same plane.
9. High pressure tube
The high-pressure tube is a pressure-resistant rubber tube, and it is responsible for delivering the high-pressure gas source to the high pressure meter and the residual gas alarm system. The combination of a high-voltage gauge and a residual alarm can both indicate the air supply pressure of the cylinder and give an audible alarm when the cylinder reaches the design approval pressure.

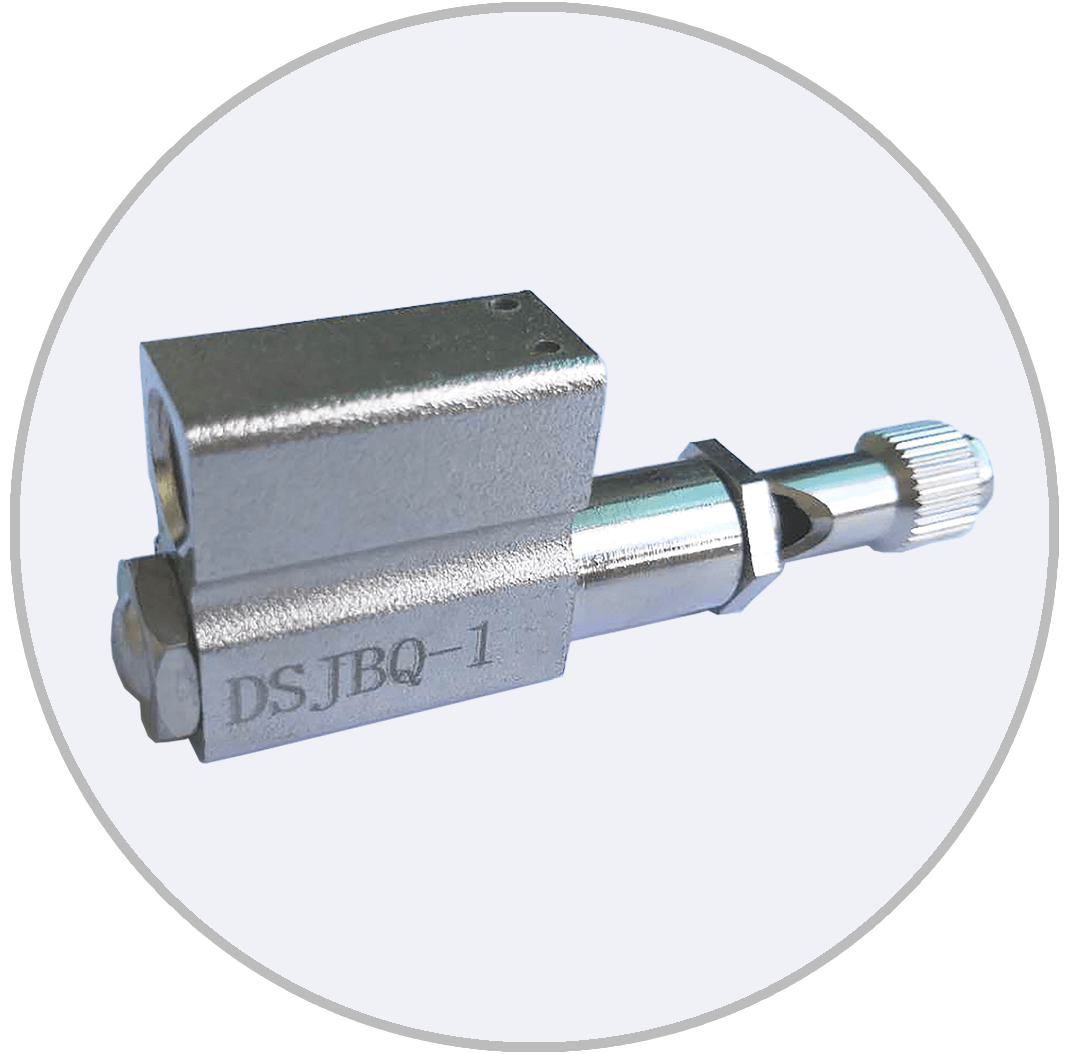

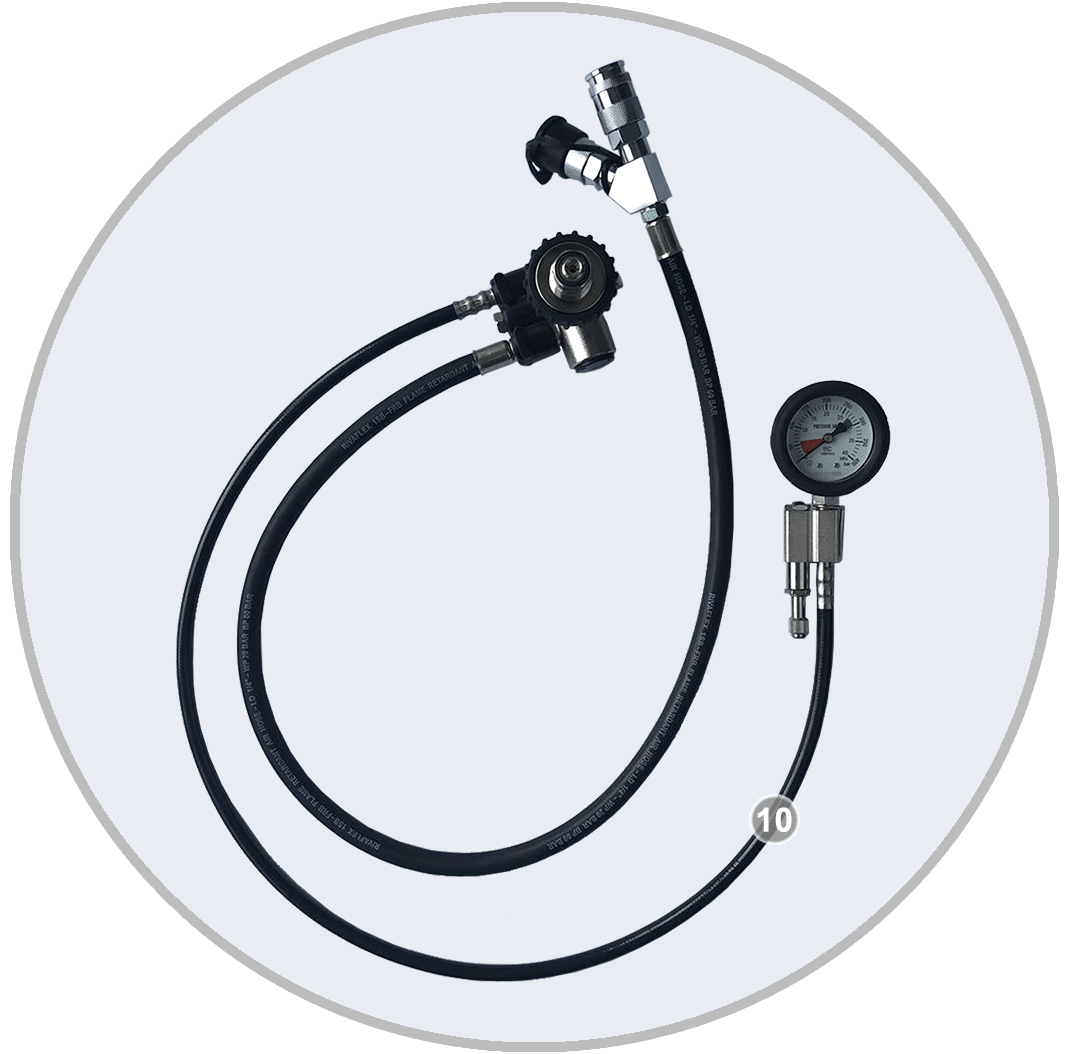

10. Alarm whistle
High pressure tube design combined with front alarm system, when the pressure in the bottle is less than 5±0.5MPa, it will automatically alarm, the alarm decibel is not less than 90db, and the alarm can be heard clearly in relatively noisy environment.
More & Tech Datas
11. Mechanical pressure gauge
The combination of a high-voltage gauge and a residual alarm can both indicate the air supply pressure of the cylinder and give an audible alarm when the cylinder reaches the design approval pressure. The gauge range is 0-40MPa, the working pressure of the cylinder is 27-30MPa and the alarm pressure 5-6MPa is marked with green and red areas, respectively. When the pressure of the cylinder drops to 5±0.5MPa, the residual gas alarm will emit a continuous sound of 90dB to remind the user that the gas source will be used up and it is necessary to evacuate the site as soon as possible. For a cylinder with a volume of more than 5L, the gas source for the cylinder can be used by the wearer for 5-8 minutes.
More & Tech Datas
DOSEEM DSBA6.8P advantages:
Optimized design, easy to use
DOSEEM DSBA6.8P SCBA is one of the lightest breathing apparatus in the world. Innovatively developed an ergonomic backsheet with outstanding resistance to heat radiation, abrasion, tear and chemical resistance. Even in the harsh environment, DOSEEM DSBA6.8P respirator is very comfortable to wear and stable. DOSEEM DSBA6.8P passed the EN137 1000℃ high temperature flame test, which has excellent anti-wear and anti-heat radiation characteristics.
Easy maintenance
During service and maintenance, in order to minimize downtime and minimize costs, DOSEEM DSBA6.8P incorporates a number of unique designs, all of which can be easily removed or reconnected from the backplane using simple tools. The strap is attached to the backing plate by a single adjustment of the innovative design. The snap connection of the primary pressure relief valve allows the pneumatic section to be quickly installed or removed from the respirator. The tubing can be quickly removed and cleaned from the backing plate.
Enhanced backpack system
DOSEEM DSBA6.8P integrates a strap that can be precisely attached to the backplate. Advanced extruded waterproof EVA harness material is protected by a CR rubber edge seal that resists tearing and wear. The wear-resistant and flame-retardant FR-TPE belt ensures a tight fit on the user's body even during large movements. The refined stainless steel metal lock makes the DSBA6.8P quality more convenient and easy to use.
Pipeline integration, safe and reliable
In order to reduce the danger of being hooked and avoid physical damage, pressure tube and the air supply tube are integrated in the backplane clamp of DOSEEM DSBA6.8P backboard, which not only prevents thermal radiation impact, but also greatly enhances the safety of the enclosed space environment entering and working.
Technical parameter
Machine parameters
Model | DSBA6.8P (CCS) | Expiratory resistance (25 times/min) | ≤700Pa |
Capacity | 6.8L | Expiratory resistance (40 times/min) | ≤1000Pa |
Storage capacity | 2040L | Operating temperature | -30~60℃ |
Maximum air flow | ≥1000L/min | The whole weight | 11.0kg |
Working pressure | ≤30MPa | Alarm intensity | ≥90db |
Alarm pressure | 5.5±0.5MPa | Light work usage time | 70min |
Static pressure in a mask cavity | ≤500Pa | Moderate work usage time | 45min |
Suction resistance | ≤500Pa | Heavy work usage time | 30min |

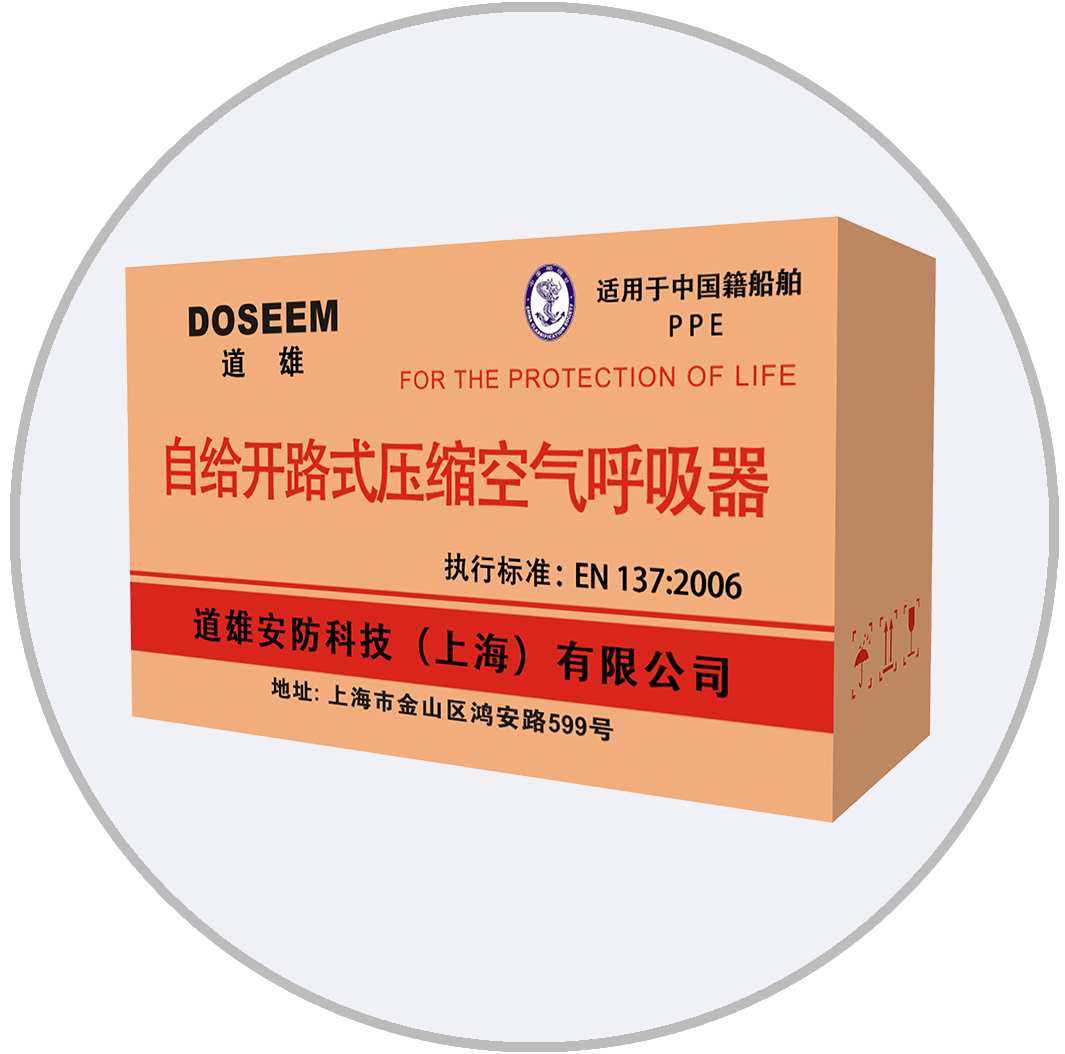

Packing parameters
Inner packaging | Material: PC/ABS | Size: 70cm * 29cm * 43cm |
Outer packing | Material: moisture-proof carton | Size: 71cm * 30cm * 44cm |
